    Windows系统下(Linux和MAC系统下请自行了解清楚)NI Measurement Studio 2010SP1 Win32Eng NI MStudio2010SP1 适用Visual Studio 2005/2008/2010

    Measurement Studio
    Measurement Studio是Microsoft Visual Studio的扩展软件,提供了用于创建测试和测量应用程序的.NET工具。
    Measurement Studio是一套专为构建工程应用程序而设计的.NET工具。您可以使用与硬件采集数据类型兼容的工程UI控件,以清晰明了地展示数据。Measurement Studio通过高级、直观的面向对象硬件类库简化了硬件通信。您可以使用业界最快、最灵活且最适合将测量数据存盘的文件格式TDMS,将自定义信息添加到采集的数据。您还可以对采集的信号进行实时在线分析,而无需编写自定义解析算法。

    文件名: MStudio2010SP1.exe
    文件大小: 1146871392 字节 (1.07 GB)
    修改日期: 2011-09-20 04:00
    MD5: 4b61c4284025e08aa155c396b5a1991a(可秒传)
    SHA1: a69396de602ae1c55aa800b09289a4b8eacf44c6
    SHA256: 160ec49edba4dd8d4e467fccc007710c9c3b883538561aa59c9c4ce67588dfb0
    CRC32: f14414ec

    百度网盘与NI官方下载地址:
    MStuidio2010SP1.txt (510 Bytes, 下载次数: 0, 售价: 10 快钱)



    Measurement Studio 2010 Service Pack 1 (SP1) for Visual Studio 2005 Readme
    Measurement Studio 2010 SP1 includes separate, parallel sets of class libraries, integration features, and support documentation for developing with Visual Studio 2010, Visual Studio 2008, and Visual Studio 2005. This readme documents only Measurement Studio support for Visual Studio 2005. Measurement Studio support for other versions of Visual Studio includes separate readme files; refer to these respective readme files for more information about Measurement Studio support for other versions of Visual Studio.
    Measurement Studio 2010 SP1 is a maintenance release containing bug fixes. Refer to the Bug Fixes in Measurement Studio 2010 SP1 section for more information.


    Legacy Languages and Frameworks
    To qualify to receive NI Measurement Studio for Legacy Environments/Languages, you must meet either of the following criteria:
    • You must maintain an active Measurement Studio Standard Service Program (SSP) contract; or
    • You must have purchased the most recent version of Measurement Studio.
    Measurement Studio 2010 SP1 for Visual Studio 2005 does not include Visual C++ MFC support. However, if you install Measurement Studio 2010 SP1 for Visual Studio 2005 on a machine that has a prior version of Measurement Studio Visual C++ MFC support already instalLED, the installer does not remove the Visual C++ MFC support from the prior version. Visual C++ MFC support remains on the system and available for use.
    Installation Considerations
    If you have Measurement Studio 2010 SP1 and Measurement Studio 2009 or an earlier version installed for the same Visual Studio version and you elect to uninstall one version of Measurement Studio, review the following uninstall notes to ensure that the version remaining on your machine continues to function properly. These uninstallation considerations only apply if you have two versions of Measurement Studio installed for the same version of Visual Studio.
    • After installing Measurement Studio 2009 and then Measurement Studio 2010 SP1, if you need to uninstall Measurement Studio 2009, your Measurement Studio 2010 SP1 installation will be broken. You can repair your Measurement Studio 2010 SP1 installation by opening the Windows Control Panel and selecting Add or Remove Programs»National Instruments Software»Change/Remove. In the resulting National Instruments Software dialog box, select Repair.
    • After installing Measurement Studio 2009 and then Measurement Studio 2010 SP1, if you uninstall Measurement Studio 2010 SP1, your Measurement Studio 2009 installation will be broken. To fix this issue, you must uninstall and reinstall Measurement Studio 2009.
    Note    There are no special considerations for installing and uninstalling Visual Studio 6.0 support.


    Installing Measurement Studio 2010 SP1
    To use Measurement Studio support for Visual Studio 2005, your computer must have the following:
    • Microsoft operating system:
      • Windows 7 (32-bit or 64-bit), including Starter Edition
      • Windows Vista (32-bit or 64-bit)
      • Windows XP, Service Pack 2 (32-bit)
      • Windows Server 2003 R2 (32-bit)
      • Windows Server 2008 R2 (64-bit)
      Note    Measurement Studio class libraries are designed to work on 64-bit operating systems. However, Measurement Studio class libraries for Visual Studio 2005 cannot be used to create 64-bit applications. To use Measurement Studio class libraries for Visual Studio 2005 on a 64-bit operating system, you must configure your projects to build 32-bit applications or libraries.

    • Microsoft .NET Framework 2.0
    • Visual Studio 2005:
      • Team System Edition
      • Professional Edition
      • Standard Edition
      • Visual C# Express Edition
      • Visual Basic .NET Express Edition
      • Visual Web Developer Express Edition
      Note    This version of Measurement Studio supports, and was tested with, Visual Studio 2005 Service Pack 1 (SP1). National Instruments recommends using Measurement Studio with Visual Studio 2005 SP1. On Windows Vista systems, National Instruments strongly recommends using Measurement Studio with Visual Studio 2005 SP1 and Visual Studio 2005 SP1 Update for Windows Vista.
    • Video display—1024 x 768, 256 colors (16-bit color recommended for user interface controls)
    • Minimum of 800 MB of free hard disk space
    • Microsoft-compatible mouse
    • Microsoft Internet Explorer 6.0 or later
    Installation Notes
    • Measurement Studio does not support Windows Vista Starter Edition.
    • Measurement Studio 2010 SP1 does not support non-R2 editions of Windows Server.
    • This version of Measurement Studio supports, and was tested with, the latest Visual Studio service pack that was available at the time this version of Measurement Studio was released. National Instruments strongly recommends using Measurement Studio with the latest Visual Studio service pack.
    • This version of Measurement Studio supports, and was tested with, the latest operating system service pack that was available at the time this version of Measurement Studio was released. National Instruments strongly recommends using Measurement Studio with the latest operating system service pack.
    • If you want to upgrade your operating system from one major version to another, National Instruments recommends first uninstalling all National Instruments software, including application software and drivers. This is typically not necessary when installing an operating system service pack.
    • Microsoft Visual Studio Express Editions do not support Measurement Studio integrated tools.
    • In order for links from Measurement Studio help topics to .NET Framework help topics to work, you must install the product documentation for Visual Studio, which installs the MSDN Library. This requires a secondary installation during the Visual Studio installation process.
    • Some National Instruments components require Microsoft Silverlight 4.0. If you use a component that requires Silverlight, a dialog box prompts you to install Silverlight from the Internet. Microsoft Silverlight 4.0 is available from the Microsoft Web site at http://www.microsoft.com/silverlight. Measurement Studio does not contain Silverlight controls.
    Driver Support
    Refer to the following list for information about .NET support for NI device drivers.
    • The DAQ Assistant and the Instrument I/O Assistant are installed from the NI Device Drivers DVD. You must install the NI Device Drivers DVD to use the assistants.
    • 64-bit support for drivers is not available in .NET class libraries for Visual Studio 2005.
    • Visual C++ MFC 2005 support:
      • The following drivers are the last version that includes full feature support for Visual C++ MFC 2005: NI-DAQmx 9.2, NI-VISA 5.0.2, and NI-488.2 2.8.
      • The following drivers do not provide support for Visual C++ MFC 2005: NI-IMAQ, NI-IMAQdx, MAX (Measurement Automation Explorer), and NI-SCOPE.
    • To download NI-SCOPE .NET class libraries, refer to NI-SCOPE .NET Driver Support.
    Installing Measurement Studio
    National Instruments recommends that you exit all programs before running the Measurement Studio installer. Applications that run in the background, such as virus scanning utilities, might cause the installer to take longer than necessary to complete.
    • Log on as Administrator or as a user with administrator privileges.

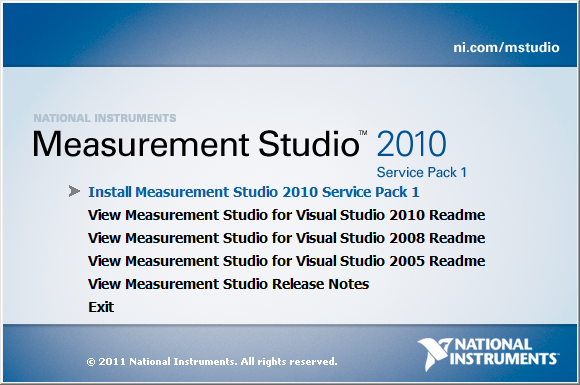

    • Launch Autorun.exe, either from the installation media or from the location to which you extracted the downloaded disc image. Select Install Measurement Studio.
    • Select Measurement Studio 2010 SP1 support for the version or versions of Visual Studio you want to install support for.
    • Follow the instructions that appear on the screen.
    Tip    You can use a spec file to programmatically control the Measurement Studio installer for a single distribution or for the entire suite. An example spec file for a single distribution is located on your installation media at <drive>:Distribution\Measurement Studio for VS20xx\Bin\template_spec.txt. For more information, refer to KnowledgeBase Article 4CJDP38M: Automating the Installation of a Single Installer on ni.com. Alternately, you can generate a spec file for the entire Measurement Studio suite. Refer to KnowledgeBase Article 4GGGDQH0: Automating the Installation of a Suited Installer on ni.com for instructions on how to generate a spec file for your suite.
    Note    For additional information related to installing support for legacy languages, refer to Configuring Your System to Use Measurement Studio 2010 .NET Support with Prior Versions of Measurement Studio Visual C++ MFC Support for more information.
    Activating Measurement Studio Licenses
    National Instruments offers a variety of Measurement Studio licenses, with certain licensed features available for each license type: Standard Edition, Professional Edition, and Enterprise Edition. Refer to the Measurement Studio Editions topic in the NI Measurement Studio Help for more information on Measurement Studio editions, and the Licensing Measurement Studio section in the NI Measurement Studio Help for more information about licensing Measurement Studio.
    Tip    To move to a different Measurement Studio edition, you can activate the new edition by using NI License Manager. Select Start&#187;All Programs&#187;NationalInstruments&#187;NI License Manager to access NI License Manager.
    You can have only one version of Measurement Studio installed on a system for each version of Visual Studio or the .NET Framework installed on the system. For example, you can have Measurement Studio 2010 SP1 for Visual Studio 2010 installed on the same system as Measurement Studio 8.6.1 for Visual Studio 2008, but you cannot have Measurement Studio 2010 SP1 for Visual Studio 2008 installed on the same system as Measurement Studio 8.6.1 for Visual Studio 2008.
    To deploy an application built with Measurement Studio .NET class libraries, the target computer must have a Windows 7/Vista/XP/Server 2003 and 2008 (R2 editions) operating system operating system and .NET Framework 2.0.


    Getting Started with Measurement Studio 2010 SP1
    For step-by-step guides to learning how to develop applications with Measurement Studio, refer to the Measurement Studio Walkthroughs section of the NI Measurement Studio Help.
    To view the Getting Started with Measurement Studio guide or the Measurement Studio Release Notes, select Start&#187;All Programs&#187;National Instruments&#187;<Measurement Studio>&#187;Getting Started with Measurement Studio or Start&#187;All Programs&#187;National Instruments&#187;<Measurement Studio>&#187;Measurement Studio Release Notes. To view these documents, you need the free Adobe Reader. Refer to the Adobe Systems Incorporated Web site at www.adobe.com to download Adobe Reader.
    Note    Because Measurement Studio 2010 SP1 is a maintenance release, the Getting Started with Measurement Studio manual and the Measurement Studio Release Notes were not revised. The most recent versions of the Getting Started with Measurement Studio manual and the Measurement Studio Release Notes document Measurement Studio 2010.


    Bug Fixes in Measurement Studio 2010 SP1
    [color={Color[Black]}}]You can access the known issues for Measurement Studio 2010 SP1 online. Refer to the Measurement Studio 2010 SP1 Known Issues Web page for a complete, up-to-date listing of known issues in Measurement Studio 2010 SP1.
    Measurement Studio 2010 SP1 Incompatibilities with Previous Versions of Measurement Studio
    Some NI components require Microsoft Silverlight. If you do not have Silverlight installed on your computer, but you do have Internet access, you can download the installer from Microsoft at http://www.microsoft.com/silverlight/. If you do not have Internet access, you can install Silverlight from this NI distribution media.
    Using Microsoft Silverlight
    If you create and distribute software applications that contain NI components that also use Microsoft Silverlight, you may be authorized to include Silverlight in installers or on physical media as long as you comply with certain requirements. Refer to the notice.txt file in the <National Instruments>\_Legal Information\Microsoft Silverlight 4.0 directory or the NI standard End User License Agreement (EULA) located in the <National Instruments>\Common\MDF\EULADepot\NIReleased directory for more information.


    Legal InformationLicenses
    &#169; 2003–2011 National Instruments Corporation. All rights reserved.
    CVI, LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information section on ni.com/trademarks for other National Instruments trademarks.
    Patents
    To comment on National Instruments documentation, refer to the National Instruments Web site.

    Measurement Studio 2010 Service Pack 1 (SP1) for Visual Studio 2008 Readme
    Measurement Studio 2010 SP1 includes separate, parallel sets of class libraries, integration features, and support documentation for developing with Visual Studio 2010, Visual Studio 2008, and Visual Studio 2005. This readme documents only Measurement Studio support for Visual Studio 2008. Measurement Studio support for other versions of Visual Studio includes separate readme files; refer to these respective readme files for more information about Measurement Studio support for other versions of Visual Studio.
    Measurement Studio 2010 SP1 is a maintenance release containing bug fixes. Refer to the Bug Fixes in Measurement Studio 2010 SP1 section for more information.


    Legacy Languages and Frameworks
    To qualify to receive NI Measurement Studio for Legacy Environments/Languages, you must meet either of the following criteria:
    • You must maintain an active Measurement Studio Standard Service Program (SSP) contract; or
    • You must have purchased the most recent version of Measurement Studio.
    Measurement Studio 2010 SP1 for Visual Studio 2008 does not include Visual C++ MFC support. However, if you install Measurement Studio 2010 SP1 for Visual Studio 2008 on a machine that has a prior version of Measurement Studio Visual C++ MFC support already installed, the installer does not remove the Visual C++ MFC support from the prior version. Visual C++ MFC support remains on the system and available for use.
    Installation Considerations
    If you have Measurement Studio 2010 SP1 and Measurement Studio 2009 or an earlier version installed for the same Visual Studio version and you elect to uninstall one version of Measurement Studio, review the following uninstall notes to ensure that the version remaining on your machine continues to function properly. These uninstallation considerations only apply if you have two versions of Measurement Studio installed for the same version of Visual Studio.
    • After installing Measurement Studio 2009 and then Measurement Studio 2010 SP1, if you need to uninstall Measurement Studio 2009, your Measurement Studio 2010 SP1 installation will be broken. You can repair your Measurement Studio 2010 SP1 installation by opening the Windows Control Panel and selecting Add or Remove Programs&#187;National Instruments Software&#187;Change/Remove. In the resulting National Instruments Software dialog box, select Repair.
    • After installing Measurement Studio 2009 and then Measurement Studio 2010 SP1, if you uninstall Measurement Studio 2010 SP1, your Measurement Studio 2009 installation will be broken. To fix this issue, you must uninstall and reinstall Measurement Studio 2009.
    Note    There are no special considerations for installing and uninstalling Visual Studio 6.0 support.


    Installing Measurement Studio 2010 SP1
    To use Measurement Studio support for Visual Studio 2008, your computer must have the following:
    • Microsoft operating system:
      • Windows 7 (32-bit or 64-bit), including Starter Edition (32-bit)
      • Windows Vista (32-bit or 64-bit)
      • Windows XP, Service Pack 2 (32-bit)
      • Windows Server 2003 R2 (32-bit)
      • Windows Server 2008 R2 (64-bit)
    • Microsoft .NET Framework 3.5
    • Visual Studio 2008:
      • Team System Edition
      • Professional Edition
      • Standard Edition
      • Visual C# Express Edition
      • Visual Basic .NET Express Edition
      • Visual Web Developer Express Edition
      Note    You must have Visual Studio 2008 Service Pack 1 or later installed on your machine for Measurement Studio to function properly.
    • Video display—1024 x 768, 256 colors (16-bit color recommended for user interface controls)
    • Minimum of 800 MB of free hard disk space
    • Microsoft-compatible mouse
    • Microsoft Internet Explorer 6.0 or later
    Installation Notes
    • Measurement Studio does not support Windows Vista Starter Edition.
    • Measurement Studio 2010 SP1 does not support non-R2 editions of Windows Server.
    • This version of Measurement Studio supports, and was tested with, the latest Visual Studio service pack that was available at the time this version of Measurement Studio was released. National Instruments strongly recommends using Measurement Studio with the latest Visual Studio service pack.
    • This version of Measurement Studio supports, and was tested with, the latest operating system service pack that was available at the time this version of Measurement Studio was released. National Instruments strongly recommends using Measurement Studio with the latest operating system service pack.
    • If you want to upgrade your operating system from one major version to another, National Instruments recommends first uninstalling all National Instruments software, including application software and drivers. This is typically not necessary when installing an operating system service pack.
    • Microsoft Visual Studio Express Editions do not support Measurement Studio integrated tools.
    • In order for links from Measurement Studio help topics to .NET Framework help topics to work, you must install the product documentation for Visual Studio, which installs the MSDN Library. This requires a secondary installation during the Visual Studio installation process.
    • Some National Instruments components require Microsoft Silverlight 4.0. If you use a component that requires Silverlight, a dialog box prompts you to install Silverlight from the Internet. Microsoft Silverlight 4.0 is available from the Microsoft Web site at http://www.microsoft.com/silverlight. Measurement Studio does not contain Silverlight controls.
    Driver Support
    Refer to the following list for information about .NET support for NI device drivers.
    • The DAQ Assistant and the Instrument I/O Assistant are installed from the NI Device Drivers DVD. You must install the NI Device Drivers DVD to use the assistants.
    • 64-bit support for NI device drivers is available in the .NET class libraries for the following drivers: NI-DAQmx 8.9.5 and later, NI-VISA 4.5.1 and later, NI-488.2 2.7.1 and later, and MAX 4.6 and later.
    • Visual C++ MFC 2008 support:
      • The following drivers are the last version that includes full feature support for Visual C++ MFC 2008: NI-DAQmx 9.2, NI-VISA 5.0.2, and NI-488.2 2.8.
      • The following drivers do not provide support for Visual C++ MFC 2008: NI-IMAQ, NI-IMAQdx, MAX (Measurement Automation Explorer), and NI-SCOPE.
    • To download NI-SCOPE .NET class libraries, refer to NI-SCOPE .NET Driver Support.
    Installing Measurement Studio
    National Instruments recommends that you exit all programs before running the Measurement Studio installer. Applications that run in the background, such as virus scanning utilities, might cause the installer to take longer than necessary to complete.
    • Log on as Administrator or as a user with administrator privileges.
    • Launch Autorun.exe, either from the installation media or from the location to which you extracted the downloaded disc image. Select Install Measurement Studio.
    • Select Measurement Studio 2010 SP1 support for the version or versions of Visual Studio you want to install support for.
    • Follow the instructions that appear on the screen.
    Tip    You can use a spec file to programmatically control the Measurement Studio installer for a single distribution or for the entire suite. An example spec file for a single distribution is located on your installation media at <drive>:Distribution\Measurement Studio for VS20xx\Bin\template_spec.txt. For more information, refer to KnowledgeBase Article 4CJDP38M: Automating the Installation of a Single Installer on ni.com. Alternately, you can generate a spec file for the entire Measurement Studio suite. Refer to KnowledgeBase Article 4GGGDQH0: Automating the Installation of a Suited Installer on ni.com for instructions on how to generate a spec file for your suite.
    Note    For additional information related to installing support for legacy languages, refer to Configuring Your System to Use Measurement Studio 2010 .NET Support with Prior Versions of Measurement Studio Visual C++ MFC Support for more information.
    Activating Measurement Studio Licenses
    National Instruments offers a variety of Measurement Studio licenses, with certain licensed features available for each license type: Standard Edition, Professional Edition, and Enterprise Edition. Refer to the Measurement Studio Editions topic in the NI Measurement Studio Help for more information on Measurement Studio editions, and the Licensing Measurement Studio section in the NI Measurement Studio Help for more information about licensing Measurement Studio.
    Tip    To move to a different Measurement Studio edition, you can activate the new edition by using NI License Manager. Select Start&#187;All Programs&#187;NationalInstruments&#187;NI License Manager to access NI License Manager.
    You can have only one version of Measurement Studio installed on a system for each version of Visual Studio or the .NET Framework installed on the system. For example, you can have Measurement Studio 2010 SP1 for Visual Studio 2010 installed on the same system as Measurement Studio 8.6.1 for Visual Studio 2008, but you cannot have Measurement Studio 2010 SP1 for Visual Studio 2008 installed on the same system as Measurement Studio 8.6.1 for Visual Studio 2008.
    To deploy an application built with Measurement Studio .NET class libraries, the target computer must have a Windows 7/Vista/XP/Server 2003 and 2008 (R2 editions) operating system operating system and .NET Framework 3.5.


    Getting Started with Measurement Studio 2010 SP1
    For step-by-step guides to learning how to develop applications with Measurement Studio, refer to the Measurement Studio Walkthroughs section of the NI Measurement Studio Help.
    To view the Getting Started with Measurement Studio guide or the Measurement Studio Release Notes, select Start&#187;All Programs&#187;National Instruments&#187;<Measurement Studio>&#187;Getting Started with Measurement Studio or Start&#187;All Programs&#187;National Instruments&#187;<Measurement Studio>&#187;Measurement Studio Release Notes. To view these documents, you need the free Adobe Reader. Refer to the Adobe Systems Incorporated Web site at www.adobe.com to download Adobe Reader.
    Note    Because Measurement Studio 2010 SP1 is a maintenance release, the Getting Started with Measurement Studio manual and the Measurement Studio Release Notes were not revised. The most recent versions of the Getting Started with Measurement Studio manual and the Measurement Studio Release Notes document Measurement Studio 2010.


    Bug Fixes in Measurement Studio 2010 SP1
    You can access the known issues for Measurement Studio 2010 SP1 online. Refer to the Measurement Studio 2010 SP1 Known Issues Web page for a complete, up-to-date listing of known issues in Measurement Studio 2010 SP1.
    Measurement Studio 2010 SP1 Incompatibilities with Previous Versions of Measurement Studio
    Some NI components require Microsoft Silverlight. If you do not have Silverlight installed on your computer, but you do have Internet access, you can download the installer from Microsoft at http://www.microsoft.com/silverlight/. If you do not have Internet access, you can install Silverlight from this NI distribution media.
    Using Microsoft Silverlight
    If you create and distribute software applications that contain NI components that also use Microsoft Silverlight, you may be authorized to include Silverlight in installers or on physical media as long as you comply with certain requirements. Refer to the notice.txt file in the <National Instruments>\_Legal Information\Microsoft Silverlight 4.0 directory or the NI standard End User License Agreement (EULA) located in the <National Instruments>\Common\MDF\EULADepot\NIReleased directory for more information.


    Legal InformationLicenses
    &#169; 2003–2011 National Instruments Corporation. All rights reserved.
    CVI, LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information section on ni.com/trademarks for other National Instruments trademarks.
    Patents
    To comment on National Instruments documentation, refer to the National Instruments Web site.

    Measurement Studio 2010 Service Pack 1 (SP1) for Visual Studio 2010 Readme
    Measurement Studio 2010 SP1 includes separate, parallel sets of class libraries, integration features, and support documentation for developing with Visual Studio 2010, Visual Studio 2008, and Visual Studio 2005. This readme documents only Measurement Studio support for Visual Studio 2010. Measurement Studio support for other versions of Visual Studio includes separate readme files; refer to these respective readme files for more information about Measurement Studio support for other versions of Visual Studio.
    Measurement Studio 2010 SP1 is a maintenance release containing the following updates:
    • Verified compatibility with Visual Studio 2010 SP1—You can use Measurement Studio class libraries, integration features, and support documentation to develop with Visual Studio 2010 Service Pack 1 (SP1).
    • Bug fixes—Refer to the Bug Fixes in Measurement Studio 2010 SP1 section for more information.
    • Installer support for Measurement Studio C++ Legacy run-time dependencies—The Measurement Studio installer includes an additional feature, C++ Legacy Support Dependencies, and a sub-feature, C++ Legacy Support for NI Reports. Only install the C++ Legacy Support Dependencies feature if you are using Visual C++ MFC support for Visual Studio 2010 with the NI Measurement Studio for Legacy Environments/Languages product and you do not have Measurement Studio 2009 C++ MFC support installed. Only install the C++ Legacy Support for NI Reports feature if you plan to use Visual C++ MFC support for NI Reports in Visual Studio 2010 and later. These additional features do not install by default; complete the following steps to install them:
      • In the Measurement Studio installer, select Install with customization for Measurement Studio 2010 Service Pack 1 for Visual Studio 2010.
      • In the Features dialog, expand the Additional Features section.
      • Select Install this feature to a local drive to install the C++ Legacy Support Dependencies feature, or select Install this feature and its subfeatures to a local drive to install both features.
      Refer to the Legacy Languages and Frameworks section for more information about the NI Measurement Studio for Legacy Environments/Languages product.


    Legacy Languages and Frameworks
    To qualify to receive NI Measurement Studio for Legacy Environments/Languages, you must meet either of the following criteria:
    • You must maintain an active Measurement Studio Standard Service Program (SSP) contract; or
    • You must have purchased the most recent version of Measurement Studio.
    The following sections list the system requirements for Measurement Studio 2010 SP1 and instructions on how to install Measurement Studio 2010 SP1.
    Note    Refer to the Measurement Studio 2010 SP1 Known Issues Web page for a complete, up-to-date list of known issues in Measurement Studio 2010 SP1 before you install the software.
    Installation Requirements
    Use the following tips to ensure you can view Measurement Studio help integrated into Visual Studio 2010 and later.
    Help Configuration Utility
    Review the following tips for working with the integrated help:
    • To view NI Measurement Studio 2010 SP1 help, you must install the Microsoft Developer Network (MSDN) documentation for Visual Studio 2010 and later before you install the Measurement Studio help. To work around this issue, you can install MSDN help and then either run the Measurement Studio installer in Repair Mode or use the Help Configuration Utility to reinstall the Measurement Studio help. The following instructions explain both workarounds:Running the Measurement Studio Installer in Repair Mode
      • Select Start&#187;Control Panel.
      • Select Add or Remove Programs.
      • Select National Instruments Software and click Change/Remove.
      • In the National Instruments Software dialog box, select NI Measurement Studio for VS2010.
      • Click Repair.
      Using the Help Configuration Utility
      • Navigate to the following directory: [installdir]\National Instruments\Shared\MeasurementStudio\Help Configuration Utility.
      • Double-click HelpConfigurationUtility.exe to launch the utility.
      • Select the checkbox for the available Measurement Studio help components you want to install. National Instruments recommends you always install all Measurement Studio help components. Installing Measurement Studio help components separately could cause unexpected results when viewing the help.
      • Select the Microsoft Help Library Locale where you want to install the Measurement Studio documentation.
      • Click Install to install the documentation.
    • Integrated Measurement Studio help for Visual Studio 2010 and later support installs with an English (en-us) locale. If you are using the Visual Studio 2010 documentation with a different locale, the default installation of Measurement Studio documentation will not fully integrate with the Visual Studio 2010 and later documentation. Use the Help Configuration Utility to install Measurement Studio documentation for Visual Studio 2010 and later to other Microsoft documentation locales.
    • If you choose to view the Microsoft Visual Studio 2010 and later help online, the help viewer launches the Microsoft Developer Network (MSDN) Web site, which does not include the NI Measurement Studio Help. To view the Measurement Studio help, select Start&#187;All Programs&#187;National Instruments&#187;Measurement Studio 2010 for Visual Studio 2010&#187;Measurement Studio Documentation.
    Driver Support
    Refer to the following list for information about .NET support for NI device drivers.
    • Important: If you create an NI VISA Windows Application or NI VISA Class Library project or you add an NI Visa Task to an existing project, Visual Studio 2010 might crash. To work around this issue, follow these steps:
      • Verify Visual Studio is closed.
      • Open MAX by selecting Start&#187;All Programs&#187;National Instruments&#187;Measurement & Automation.
      • Close MAX.
      • Rerun the Measurement Studio VISA Windows Application or Class Library project or re-add the NI Visa Task to your existing project.
    • The DAQ Assistant and the Instrument I/O Assistant are installed from the NI Device Drivers DVD. You must install the NI Device Drivers DVD to use the assistants.
    • Visual Studio 2010 support:
      • The following drivers provide 32-bit and 64-bit support for Visual Studio 2010: NI-DAQmx 9.2.3 and later, NI-VISA 5.0.3 and later, and NI-488.2 2.8.1 and later.
      • The following drivers do not provide support for Visual Studio 2010: NI-IMAQ, NI-IMAQdx, MAX (Measurement& Automation Explorer), and NI-SCOPE. Refer to the Measurement Studio 2010 Known Issues Web page for more information.

    Installing Measurement Studio
    National Instruments recommends that you exit all programs before running the Measurement Studio installer. Applications that run in the background, such as virus scanning utilities, might cause the installer to take longer than necessary to complete.
    • Log on as Administrator or as a user with administrator privileges.
    • Launch Autorun.exe, either from the installation media or from the location to which you extracted the downloaded disc image. Select Install Measurement Studio.
    • Select Measurement Studio 2010 SP1 support for the version or versions of Visual Studio you want to install support for.
    • Follow the instructions that appear on the screen.
    Tip    You can use a spec file to programmatically control the Measurement Studio installer for a single distribution or for the entire suite. An example spec file for a single distribution is located on your installation media at <drive>:Distribution\Measurement Studio for VS20xx\Bin\template_spec.txt. For more information, refer to KnowledgeBase Article 4CJDP38M: Automating the Installation of a Single Installer on ni.com. Alternately, you can generate a spec file for the entire Measurement Studio suite. Refer to KnowledgeBase Article 4GGGDQH0: Automating the Installation of a Suited Installer on ni.com for instructions on how to generate a spec file for your suite.
    Activating Measurement Studio Licenses
    National Instruments offers a variety of Measurement Studio licenses, with certain licensed features available for each license type: Standard Edition, Professional Edition, and Enterprise Edition. Refer to the Measurement Studio Editions topic in the NI Measurement Studio Help for more information on Measurement Studio editions, and the Licensing Measurement Studio section in the NI Measurement Studio Help for more information about licensing Measurement Studio.
    Tip    To move to a different Measurement Studio edition, you can activate the new edition by using NI License Manager. Select Start&#187;All Programs&#187;NationalInstruments&#187;NI License Manager to access NI License Manager.
    You can have only one version of Measurement Studio installed on a system for each version of Visual Studio or the .NET Framework installed on the system. For example, you can have Measurement Studio 2010 SP1 for Visual Studio 2010 installed on the same system as Measurement Studio 8.6.1 for Visual Studio 2008, but you cannot have Measurement Studio 2010 SP1 for Visual Studio 2008 installed on the same system as Measurement Studio 8.6.1 for Visual Studio 2008.
    To deploy an application built with Measurement Studio .NET class libraries, the target computer must have a Windows 7/Vista/XP/Server 2003 and 2008 (R2 editions) operating system operating system and .NET Framework 4.0.


    Getting Started with Measurement Studio 2010 SP1
    For step-by-step guides to learning how to develop applications with Measurement Studio, refer to the Measurement Studio Walkthroughs section of the NI Measurement Studio Help.
    To view the Getting Started with Measurement Studio guide or the Measurement Studio Release Notes, select Start&#187;All Programs&#187;National Instruments&#187;<Measurement Studio>&#187;Getting Started with Measurement Studio or Start&#187;All Programs&#187;National Instruments&#187;<Measurement Studio>&#187;Measurement Studio Release Notes. To view these documents, you need the free Adobe Reader. Refer to the Adobe Systems Incorporated Web site at www.adobe.com to download Adobe Reader.
    Note    Because Measurement Studio 2010 SP1 is a maintenance release, the Getting Started with Measurement Studio manual and the Measurement Studio Release Notes were not revised. The most recent versions of the Getting Started with Measurement Studio manual and the Measurement Studio Release Notes document Measurement Studio 2010.


    Bug Fixes in Measurement Studio 2010 SP1
    [color={Color[Black]}}]You can access the known issues for Measurement Studio 2010 SP1 online. Refer to the Measurement Studio 2010 SP1 Known Issues Web page for a complete, up-to-date listing of known issues in Measurement Studio 2010 SP1.
    Measurement Studio 2010 SP1 Incompatibilities with Previous Versions of Measurement Studio
    Some NI components require Microsoft Silverlight. If you do not have Silverlight installed on your computer, but you do have Internet access, you can download the installer from Microsoft at http://www.microsoft.com/silverlight/. If you do not have Internet access, you can install Silverlight from this NI distribution media.
    Using Microsoft Silverlight
    If you create and distribute software applications that contain NI components that also use Microsoft Silverlight, you may be authorized to include Silverlight in installers or on physical media as long as you comply with certain requirements. Refer to the notice.txt file in the <National Instruments>\_Legal Information\Microsoft Silverlight 4.0 directory or the NI standard End User License Agreement (EULA) located in the <National Instruments>\Common\MDF\EULADepot\NIReleased directory for more information.


    Legal InformationLicenses
    &#169; 2003–2011 National Instruments Corporation. All rights reserved.
    CVI, LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information section on ni.com/trademarks for other National Instruments trademarks.
    Patents
    To comment on National Instruments documentation, refer to the National Instruments Web site.
    回复

    使用道具 举报

    您需要登录后才可以回帖 登录 | 注册会员

    本版积分规则

    LabVIEW图像处理教程
    机器视觉商城淘宝店铺
    视觉论坛充值赞助方法

    QQ|机器视觉论坛VISIONBBS.COM|视觉之家VISIONHOME.CN|东莞市华动智能科技有限公司 ( 粤ICP备17078359号-2 )|网站地图

    GMT+8, 2021-8-5 02:08

    Powered by shixinhua.com X3.4

    © 2009-2021 VISIONBBS.COM 浏览量:

    快速回复 返回顶部 返回列表
